Your dad always used 5W-30. His cars ran fine. So you grabbed a bottle off the shelf, same as always, and poured it into your new Toyota. The filler cap says 0W-20. That’s a problem.
The right grade is whichever your OEM specifies. Not the thicker one, not the cheaper one, not the one your dad used. Your engine was built around a specific viscosity, and running the wrong one changes hydraulic pressures your valvetrain depends on.
Not sure which grade your engine needs? Download OilFinderPro app and match it to your VIN.
What Those Numbers Actually Mean
The digits on the bottle aren’t marketing. They’re physical limits set by the SAE J300 standard, the same standard every oil manufacturer has to meet.
Take the “W” number first. That’s your cold-weather rating. A 0W-20 is tested for pumpability down to -35°C. A 5W-30 is only tested to -30°C. Five degrees doesn’t sound like much until it’s a January morning and your oil pump is trying to push cold, thick fluid to your bearings before metal touches metal. The 0W grade gets there faster.
The second number, 20 or 30, is what the oil does at operating temperature. Specifically, it’s kinematic viscosity at 100°C. Higher number means thicker at heat. A lot of people assume thicker is safer. It isn’t, not automatically.

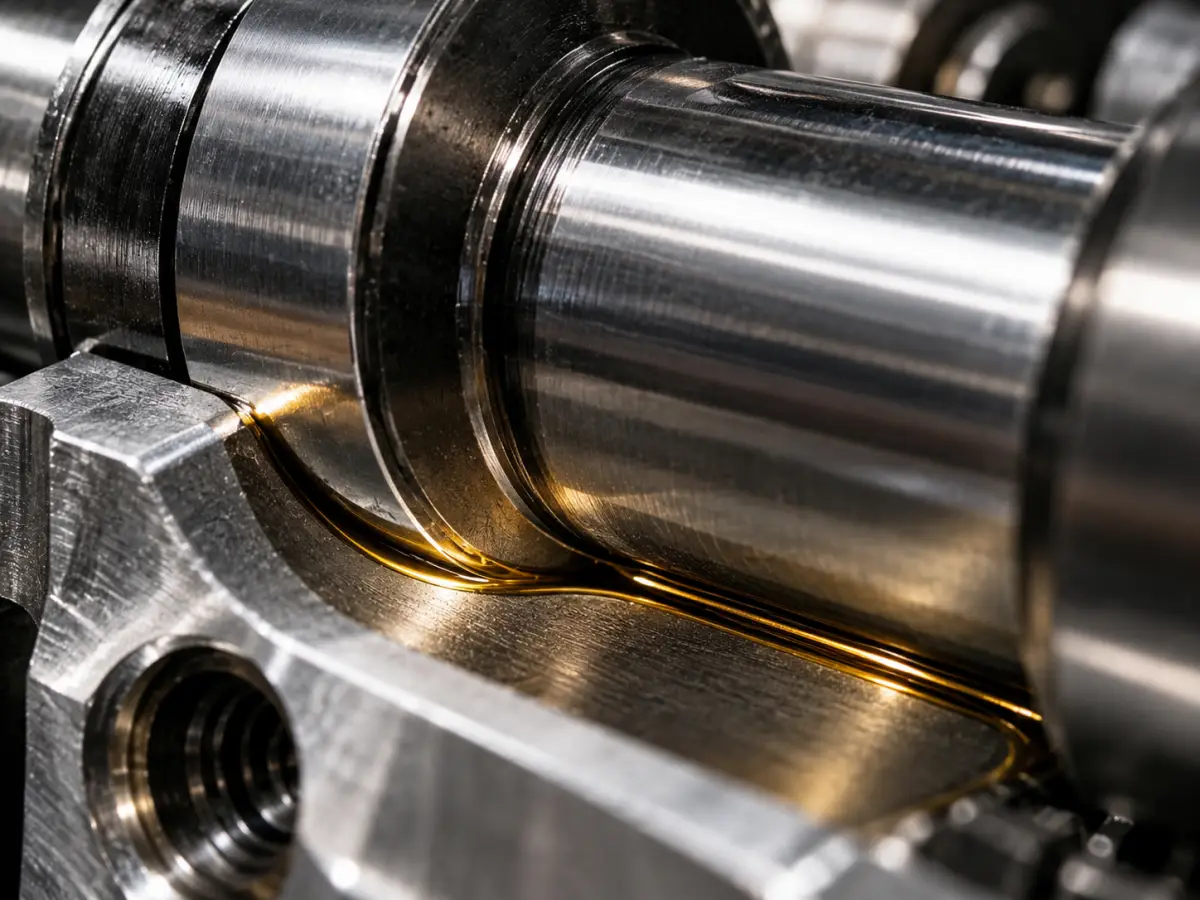

The number that actually tells you about protection under load is HTHS viscosity at 150°C. That’s the measurement that simulates what happens inside your crankshaft bearings when the engine is working hard. A 0W-20 has to hit a minimum of 2.6 mPa·s. A 5W-30 sits at 2.9 mPa·s. In an engine engineered around tight clearances, that extra thickness doesn’t add protection. It adds drag.
| Property | 0W-20 | 5W-30 |
|---|---|---|
| Cold cranking limit | Max 6,200 cP at -35°C | Max 6,600 cP at -30°C |
| Kinematic viscosity at 100°C | 6.9 to <9.3 cSt | 9.3 to <12.5 cSt |
| HTHS viscosity at 150°C | Minimum 2.6 mPa·s | Minimum 2.9 mPa·s |
| Typical OEM use | Modern passenger cars | Passenger cars, light duty |
| Fuel economy impact | Baseline | 1.0–2.5% penalty |
| Common certification | API SP / ILSAC GF-6A | API SP / ILSAC GF-6A |
Engines That Require 0W-20, No Substitutes
Some engines don’t just prefer 0W-20. They’re built around it, and they’ll tell you about it when you get it wrong.
Toyota’s 2GR-FKS 3.5L V6 and A25A-FKS 2.5L are the obvious examples. The hydraulic oil control valves running the VVT system need precise pressure response, and that response is calibrated around 0W-20 flow characteristics. Run a heavier grade and the solenoids can react more slowly than the calibration expects. When the camshaft ends up outside its commanded timing window, the ECU logs a P0011 or P0012 and can drop the engine into a reduced-power mode.
Honda’s L15B7 1.5L VTEC Turbo is another one. This engine runs direct injection, which means fuel dilution is a real ongoing issue, unburned gas washing down the cylinder walls and thinning the oil in the sump. Honda designed the variable-displacement oil pump and turbo cooling passages around 20-weight oil. Running 5W-30 adds drag during cold short trips, before the oil even gets up to temperature.
Mazda SkyActiv-G engines run compression ratios of 13:1 to 14:1. To get there without detonation, Mazda uses low-tension piston rings and tight bearing tolerances, and those tolerances are matched to 0W-20. Subaru’s FB20 and FA24 flat-fours have horizontal oil galleries, so a thinner oil reaches the far cylinder banks faster on a cold start. Nissan’s MR20DD is the same story: variable valve timing precision depends on it.
So what actually happens when you run 5W-30 in one of these? Less than the internet suggests. Published used-oil analyses on modern engines generally show no meaningful difference in wear metals from a single off-spec fill. The oil film is still there. Your engine is not dying from one wrong oil change.
What you do get immediately is a fuel economy hit, roughly 1% to 2.5% from the extra drag inside the rotating assembly. And in VVT-heavy engines, sluggish actuator response that may or may not throw a code depending on how sensitive your calibration is. Those are the real costs, and they start on the drive home.
Engines That Approve Both Grades
Here’s where it gets interesting. The same engine can have different approved grades depending on where it was sold.
A Toyota A25A-FKS leaving the factory bound for North America gets a manual that says 0W-20, full stop. The same engine going to Europe or Australia typically lists 0W-20 as the primary choice while allowing heavier grades depending on climate and load. The hardware is identical. The regulatory environment isn’t.
Subaru does something similar. North American FB20 and FA24 manuals mandate 0W-20 for EPA compliance, while some markets list 5W-30 as an acceptable alternative under severe duty, meaning heavy towing, sustained mountain driving, or extreme ambient temperatures. It’s in the manual. Most people never read that far.
Mazda SkyActiv-G engines sold in Europe are serviced against ACEA sequences such as A3/B4 or A5/B5, which are written for sustained high-speed highway driving. Those categories cover 5W-30. Before you assume a bottle is compatible, check which approvals it actually carries, not just the grade on the front. Our guide to OEM approved vs. meets requirements oil walks through the difference.
The High-Mileage Question
Your engine has 160,000 miles on it. A mechanic tells you to switch to 5W-30 because “the clearances are worn and need a thicker oil to fill the gaps.” You’ve probably heard this.
It’s advice from 1985.
That logic made sense on old pushrod engines with cast-iron bearings and loose tolerances. Modern engines use aluminum-silicon blocks, hardened journals, and micro-polished bearings running on full synthetic. Bearing clearances in these engines barely change past 200,000 miles. There are no gaps to fill.
The data-driven answer is to get a used oil analysis instead of guessing. A standard lab report runs about $35. If your engine is consuming less than one quart per 5,000 miles and the analysis shows normal wear metals and stable viscosity, stay on 0W-20. It’s still doing its job.
If you’re burning more than one quart per 1,500 miles and the analysis shows fuel dilution or ring bypass, that’s when a 5W-30 high-mileage formulation makes sense. The higher base viscosity and seal conditioners will actually help. But that’s a specific diagnosis, not a blanket rule for anything over 100,000 miles.
Can I Use 5W-30 Instead of 0W-20?
Depends entirely on the situation.
Emergency top-up. Fine. Running 5W-30 for a top-off, or even a full interval, won’t cause immediate damage. Change it properly at the next service.
One-time substitution. Tolerable, but shorten your interval. Toyota’s own maintenance guidance is that if 0W-20 isn’t available and you use 5W-20 or 5W-30, you drop the drain interval from 10,000 miles to 5,000 miles. The extended drain is a privilege of the correct certified synthetic. You don’t get it with a substitute.
Long-term habit. Don’t. Sustained 5W-30 use in a 0W-20 engine costs you fuel economy, slows cold-start circulation, and degrades VVT response in sensitive valvetrains like the Honda L15B7 and Toyota 2GR-FKS. Here’s what happens if you put the wrong engine oil in your car over the longer run.
What the Fuel Economy Data Actually Shows
0W-20 exists partly because of fuel economy regulations. Automakers needed thinner oils to squeeze past the CAFE test cycle. That’s real. It doesn’t mean 0W-20 is a scam. It means the engineering and the regulation aligned for once.
Published engine testing generally puts the gain from switching 5W-30 to 0W-20 at roughly 0.5% to 1.5% under standardized conditions. Running the wrong direction, 5W-30 in a 0W-20 engine, costs you about 1% to 2.5%.
In real numbers: 15,000 miles a year at 30 MPG on 0W-20 burns 500 gallons. A 2% efficiency hit drops you to 29.4 MPG, or 510 gallons. That’s about $38 extra per year at current prices.
For you personally, that’s coffee money. Across a manufacturer fleet of 1.5 million vehicles, it’s tens of millions in compliance exposure. That’s why they enforce the spec. If you’re also weighing base oil quality, see synthetic vs. conventional engine oil.
Frequently Asked Questions
What is the difference between 0W-20 and 5W-30?
The main difference is how they behave at the extremes. 0W-20 flows faster in cold starts down to -35°C and creates less drag at operating temperature, which is why fuel-economy-focused engines specify it. 5W-30 is thicker when cold and holds a slightly heavier film under load, which suits engines built around wider clearances or severe-duty use.
Can I use 5W-30 instead of 0W-20?
Short term, yes. It won’t wreck your engine. Long term it costs you fuel economy, slows down your VVT system, and in cold climates increases cold-start wear. If you need to do it once, shorten your next oil change interval.
Is 0W-20 too thin for older engines?
For engines designed around 0W-20 tolerances, no, even at high mileage. For older engines built before 2005 that specify 5W-30 or 10W-30, yes. 0W-20 is too thin for them and can drop oil pressure below safe levels.
Will 5W-30 damage my engine if it specifies 0W-20?
Not immediately. But in engines with hydraulic VVT systems, heavier oil can slow actuator response enough to trigger timing codes. It also increases pumping losses and costs you fuel economy every time you fill up.
Is 0W-20 good for high mileage?
Yes, if your engine isn’t burning excessive oil. Modern engines hold tight clearances well past 150,000 miles. Only switch to a heavier grade if a used oil analysis shows actual ring bypass or severe fuel dilution, not just because the odometer is high.
Which is better in hot weather, 0W-20 or 5W-30?
5W-30 holds a slightly thicker film under sustained high heat, which matters during heavy towing or desert driving. But unless your OEM explicitly approves 5W-30 for severe duty in your region, don’t switch. The VVT interference risk isn’t worth it.
Your engine’s spec is in the manual. Your manual is encoded in your VIN. Download OilFinderPro app and look it up, or browse vehicle specifications directly.
Sources
- SAE International, J300 Engine Oil Viscosity Classification, cold-cranking, kinematic, and HTHS viscosity limits for the 0W, 5W, 20, and 30 grades. Accessed September 18, 2026.
- American Petroleum Institute, Motor Oil Guide, API SP and ILSAC GF-6A category definitions and certification marks. Accessed September 18, 2026.
- ACEA, ACEA Oil Sequences 2023 for Light-Duty Engines, A3/B4 and A5/B5 category scope for European-market service fills. Accessed September 18, 2026.
- U.S. Department of Transportation, Corporate Average Fuel Economy (CAFE) Standards, fleet fuel-economy program behind low-viscosity factory fills. Accessed September 18, 2026.
